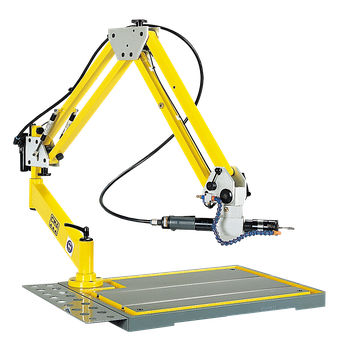

RN Series Tapping
Pneumatic Tapping - RN Series
new(1) Available: Motor 600rpm / Capacity M10, Motor 800rpm / Capacity M10 and Motor 1000rpm / Capacity m8.
(2) Available: Motor 600rpm / Capacity M20
* Machines Equipped with multi-position head
Standard
Accessories
- Air Set: Regulator, monometer, Filter and Impermeator.
- Pneumatic motor
- Fixed Mount
- Tap Lubricator System
- Quick Change chuck for Bilz system collets.
- Air Flow: 650 I/min
- Working pressure : 7 kgr/cm²
- Working area : 1.800 mm
SPECIFICATIONS
| Model | Capacity | Chuck | RPM | Weight |
|---|---|---|---|---|
| RN - 12.400 | M3 - M12 | N° 2 - Ø19 | (1) 400 | 25 kg. |
| RNM - 12.400* | M3 - M12 | N° 2 - Ø19 | (1) 400 | 26 kg. |
| RNR - 20.400 | M3 - M24 | N° 2 - Ø31 | (2) 400 / 115 | 26 kg. |
| RNRM - 20.400* | M3 -M24 | N° 2 - Ø31 | (2) 400 / 115 | 27 kg. |
Please Note: The manufacturer reserve rights to modify design, specifications, mechanism, etc. to improve the performance of this machine without notice.
