RH,RHM & RHRM Series

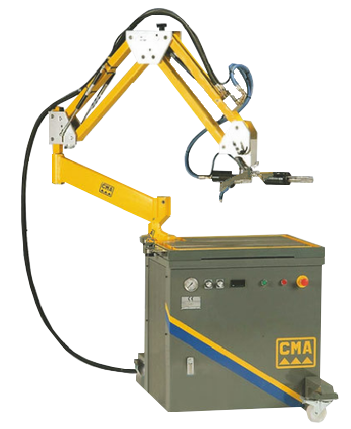

CMA HYDRAULIC TAPPING
new
Standard
Accessories
- Worktable with T.Form canals of 800×600 mm
- Hydraulic unit integrated into the worktable
- Electric motor power 4 kw
- Adjustable arm
- Multiposition head 0°- 360° (mod. RHM)
- Quick change chuck for Bilz system collets
- Speed regulator independent (forward and reverse)
- Tapping lubrication system
- Gearbox with two speed ranges
- Digital readout
- Fixed mount
Optional
Accessories
- Set collets M3-M24
- Drill chuck adapter
- Threading die collets
- Automatic depth control:
- Programming from touch screen: down-stop-inversion in automatic
- Magnetic base B1
- C-clamp mount
- Worktable with T.Form canals of 1000×680 mm
- Fixed lateral worktable with T.Form canals 680×360 mm
- Set wheels with support
SPECIFICATIONS
| MODEL | CAPACITY | CHUCK | RPM | WEIGHT |
|---|---|---|---|---|
| RH-20 | M3-M24 | N°2-Ø31 | 325 | 280 Kg |
| RHM-20 | M3-M24 | N°2-Ø31 | 325 | 285 Kg |
| RHR-30 | M4-M30 | N°2-Ø31 | 500/140 | 285 Kg |
| RHRM-30 | M4-M30 | N°2-Ø31 | 500/140 | 290 Kg |
| RHR-45 D | M4-M45 | N°3-Ø48 | 475/105 | 320 Kg |
| RHRM-45 D | M4-M45 | N°3-Ø48 | 475/105 | 330 Kg |
| RHR-60 D | M6-M60 | N°4-Ø60 | 240/45 | 380 Kg |
| RHRM-60 D | M6-M60 | N°4-Ø60 | 240/45 | 400 Kg |
Please Note: The manufacturer reserve rights to modify design, specifications, mechanism, etc. to improve the performance of this machine without notice.
