HFS-6

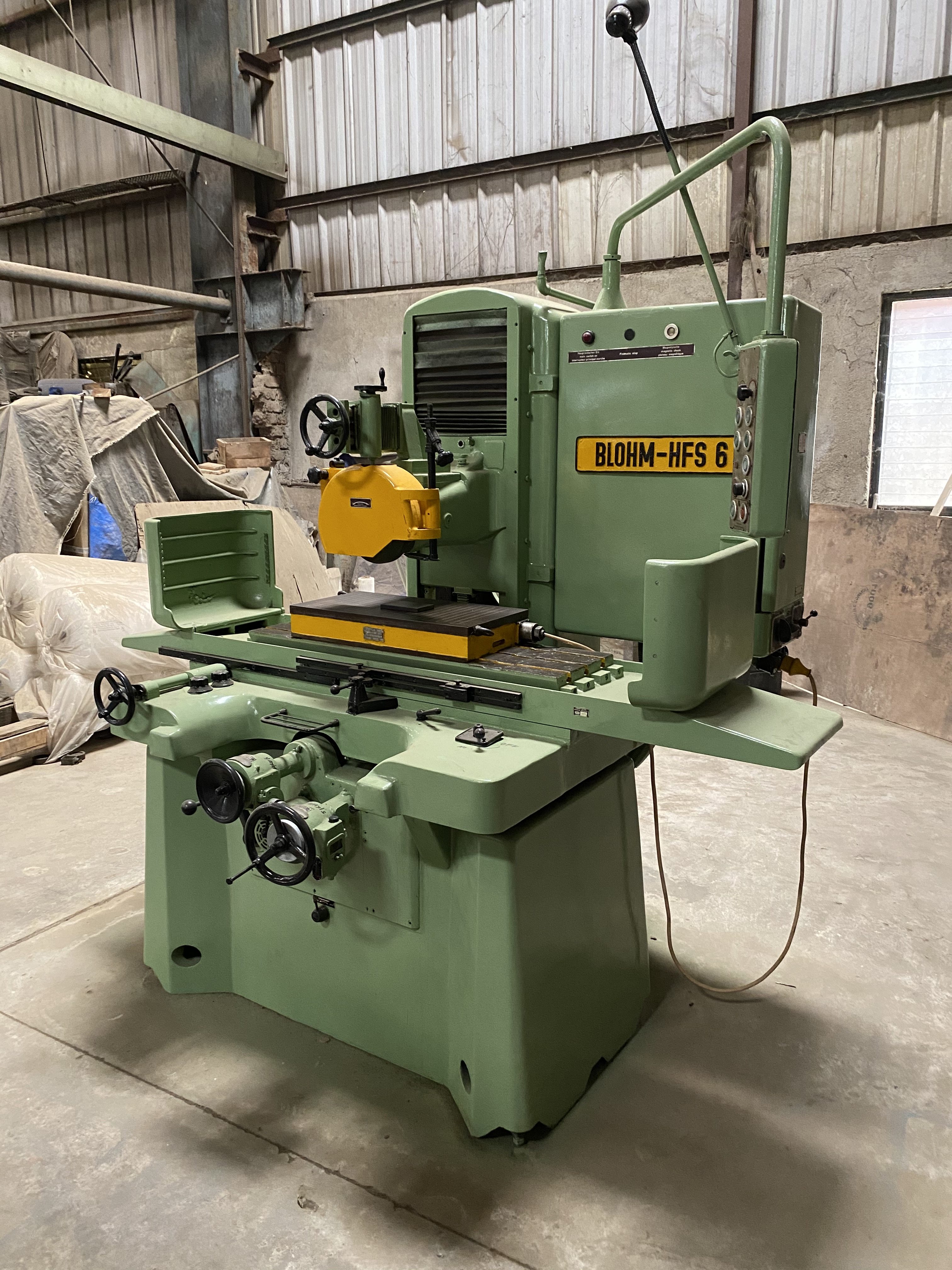

BLOHM - HYDRAULIC SURFACE GRINDER
usedThe Blohm Hydraulic Surface Grinder, made in Germany, features a maximum grinding length of 600 mm and width of 400 mm, with a table longitudinal stroke of 650 mm and a cross travel of 350 mm.
The grinder includes an electro magnetic chuck of 600 x 300 mm and offers a spindle speed of 1400 rpm. With a total power of 8.5 kW and an approximate weight of 3000 kg, this machine is noted for its good overall condition.
SPECIFICATIONS
| COUNTRY OF ORIGIN | GERMANY |
|---|---|
| MAX. LENGTH GRINDING | 600 MM |
| MAX. WIDTH GRINDING | 400 MM |
| LONGITUDINAL STROKE OF TABLE [X] | 650 MM |
| CROSS TRAVEL OF OF CARRIAGE [Y] | 350 MM |

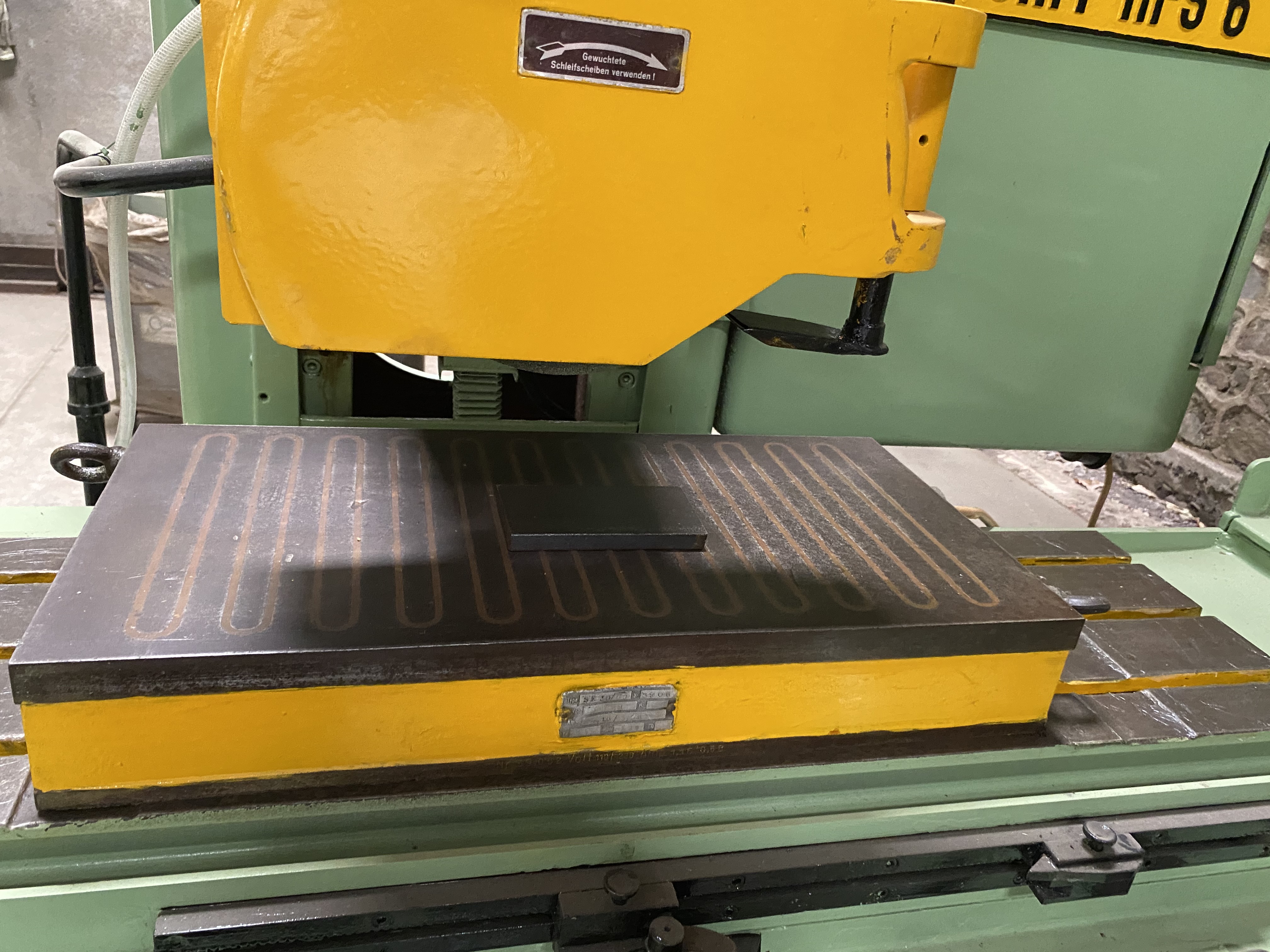

| ELECTRO MAGNETIC CHUCK | 600 X 300 MM |
| VERTICAL MOVEMENT OF GRINDING WHEEL HEADSTOCK [Z] | 140 MM |
| SPINDLE SPEED | 1400 rpm |
| CLAMPING SURFACE OF TABLE | 1020 X 300 MM |
| DISTANCE BETWEEN SPINDLE CENTER TO TABLE SURFACE | 600 MM |
| GRINDING WHEEL DIA | 300 MM |
| GRINDING WHEEL WIDTH | 50 MM |
| GRINDING WHEEL BORE | 76 MM |
| TABLE LONGITUDINAL FEED | 2-30M / MIN STEPLESS |
| TOTAL POWER | 8.5 KW |
| APPROX WEIGHT OF THE MACHINE | 3000 KGS |
| OVERALL CONDITION | GOOD |
Please Note: Description & Dimensions mentioned are to the best of our knowledge correct but are not guaranteed. Prospective Buyers are advised to check any vital details.
The machine is on display at our showroom and we request you to visit for inspection with prior intimation.
